RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine

RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine

42kW diesel water well drilling machine

RCF150S well drilling rig

Yunnei engine water well drill

Lieu d'origine:

Chine

Nom de marque:

RanCheng

Certification:

CE, ISO 9001:2000

Numéro de modèle:

RFC150S

Contactez-nous
Demande Une citation
RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine
RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine
Détails du produit
Couleur:
Personnalisable
Moteur diesel:
Moteur Yunnei de 42 kW
Efficacité de l'alimentation:
10-35m/h
Vitesse de déplacement:
2.5 km/h
Capacité à grimper:
30°
Diamètre du tuyau:
76 mm/89 mm
Longueur du tuyau:
2 m
Mettre en évidence:

42kW diesel water well drilling machine

,

RCF150S well drilling rig

,

Yunnei engine water well drill

Conditions de paiement et d'expédition
Quantité de commande min
1
Prix
US$ 12000-19500
Détails d'emballage
Il peut être expédié par un conteneur de 20 "
Délai de livraison
10 à 15 jours ouvrables
Conditions de paiement
T/T, Western Union
Capacité d'approvisionnement
100 ensembles par mois
Produits connexes
Bon prix Water Well Drilling Machine For 800m Deep Drilling In All Types Of Soil 154KW Cummins en ligne Vidéo

Water Well Drilling Machine For 800m Deep Drilling In All Types Of Soil 154KW Cummins

Obtenez le meilleur prix
Bon prix 200m Borehole Drilling Machine/Borewell/Hydraulic Crawler Mounted Pneumatic Water Well Drilling Rig Machine For Sale en ligne Vidéo

200m Borehole Drilling Machine/Borewell/Hydraulic Crawler Mounted Pneumatic Water Well Drilling Rig Machine For Sale

Obtenez le meilleur prix
Bon prix Water Well Drilling Machine for 800m Deep Drilling in All Types of Soil en ligne Vidéo

Water Well Drilling Machine for 800m Deep Drilling in All Types of Soil

Obtenez le meilleur prix
Bon prix Industrial-Grade 280M Diesel Hydraulic Drill Rig Designed for Fast Penetration en ligne Vidéo

Industrial-Grade 280M Diesel Hydraulic Drill Rig Designed for Fast Penetration

Obtenez le meilleur prix
Contactez-nous
Contact maintenant
Description du produit
RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine
Product Attributes
Attribute Value
Color Customizable
Diesel engine 42KW Yunnei engine
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Pipe diameter 76mm/89mm
Pipe length 2m
Product Description

RCF150S Water Well Drilling Machine For 10-35m/H Feeding Efficiency 42kW Yunnei Diesel Engine

  • The rotation is driven by two high-torque, compact and adjustable-speed motors.
  • The triple gear pump ensures the durability and reliability of the oil pump.
  • The combined platform is beautifully designed and equipped with pedals for easy operation.
  • Equipped with clutch and auxiliary cooler, it is suitable for high altitude and cold climate areas.
  • German technology travel motor; high torque, high climbing ability, low failure rate.
Machine Specifications
Bore diameter(hammer) 90-300mm
Bore depth 150m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Once-time advance length 2.4m
Pipe diameter 76mm/89mm
Pipe length 2m
Push force 4T
Lifting force 12T
Max torque of rotary 3500-3800Nm
Rotary speed 40-65r/min
Mud Pump flow 200L/min (option)
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 2300×1200×1900MM
Weight 2300kg
Diesel engine 42KW Yunnei engine
Pricing Information

The price of a 150m water well drilling rig usually ranges from $10,000 to $60,000 or even higher, depending on factors such as brand, configuration, features and market conditions.

For example, the RCF150S water well drilling rig manufactured by Henan Shanhe Rancheng Machinery costs $12,000 and has excellent performance. As a professional drilling rig manufacturer with more than 10 years of industry experience, we provide a full range of services from demand assessment to equipment selection to meet your specific drilling needs.

The RCF150S is CE and ISO certified, equipped with a 42kW Yunnei diesel engine, and can drill holes up to 150m deep with a hole diameter range of 90-300mm. The rig is designed for off-grid operations and is suitable for operations in remote areas with limited power supply.

Our comprehensive after-sales service system, including shared global warranty, technical training and parts supply, gives you peace of mind and maximizes the operational efficiency of each project.

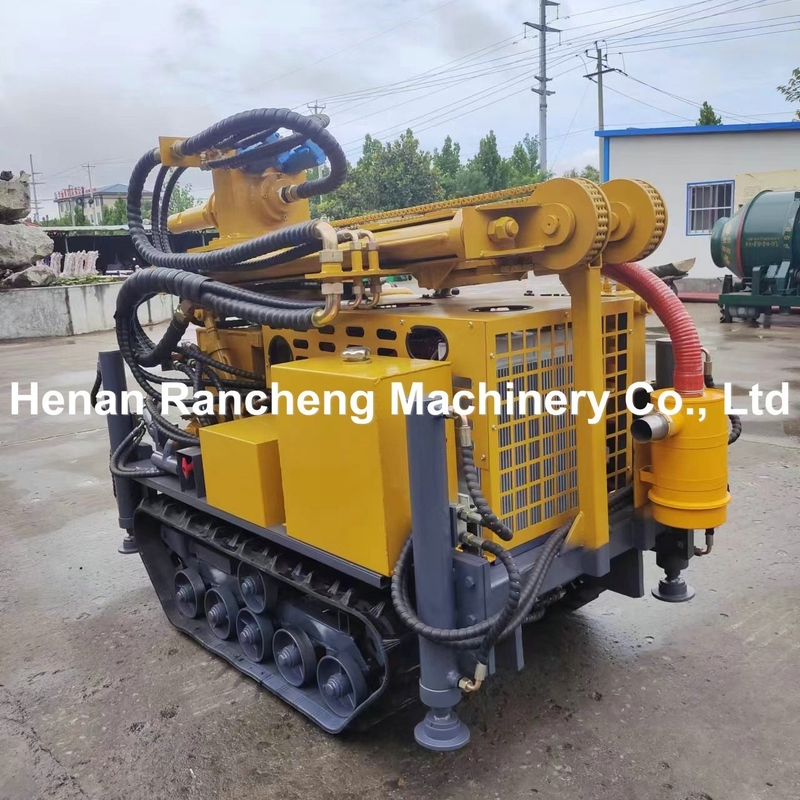

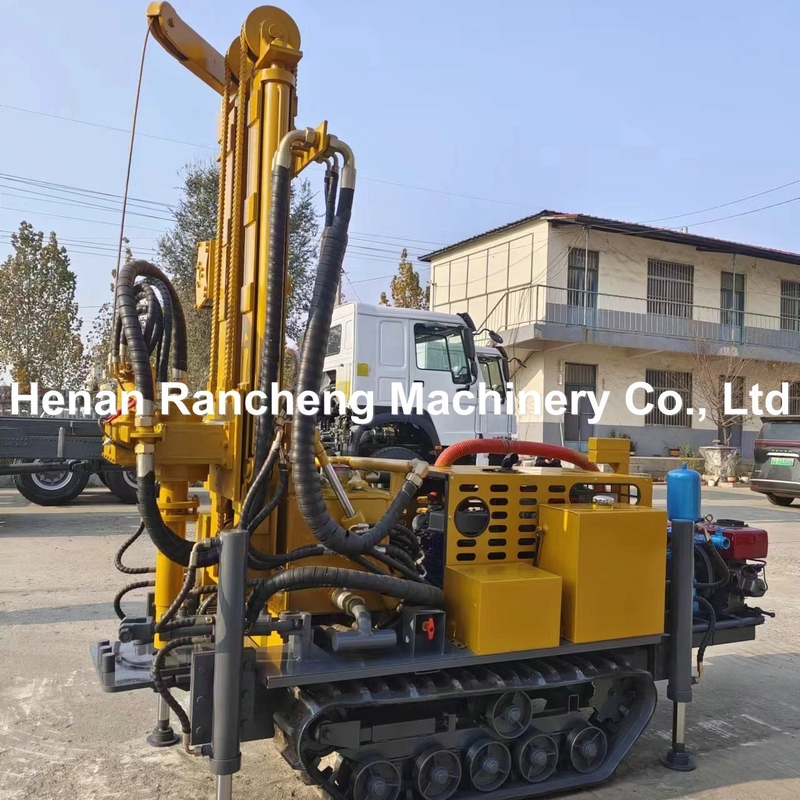

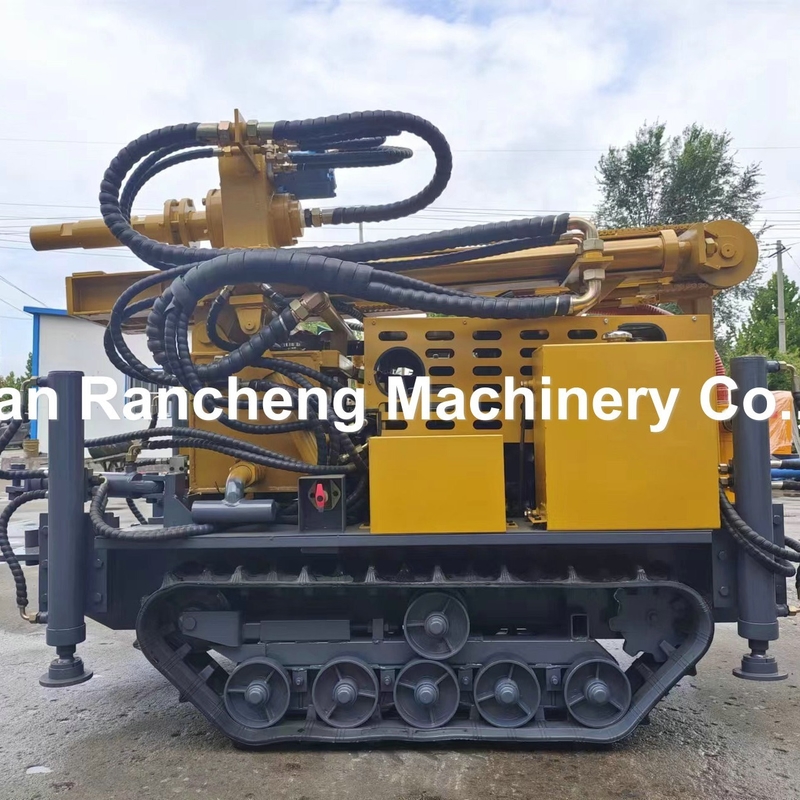

Machine Gallery
RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine 0
RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine 1
RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine 2
RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine 3
RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine 4
RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine 5
Company Information

Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China. We are dedicated in designing and manufacturing water well drilling rigs, rotary drilling rigs, anchor drilling rigs, core drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors and drilling tools etc.

We have advanced technology, modern equipment, first-class team and rich experience. Our products passed ISO9001 and CE certification, and they are exported to around 200 countries and areas in the world, receiving very good feedback from our clients.

We pursue the principle of "Customer First, Integrity First", and we are sincerely expecting to cooperate with you!

RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine 6

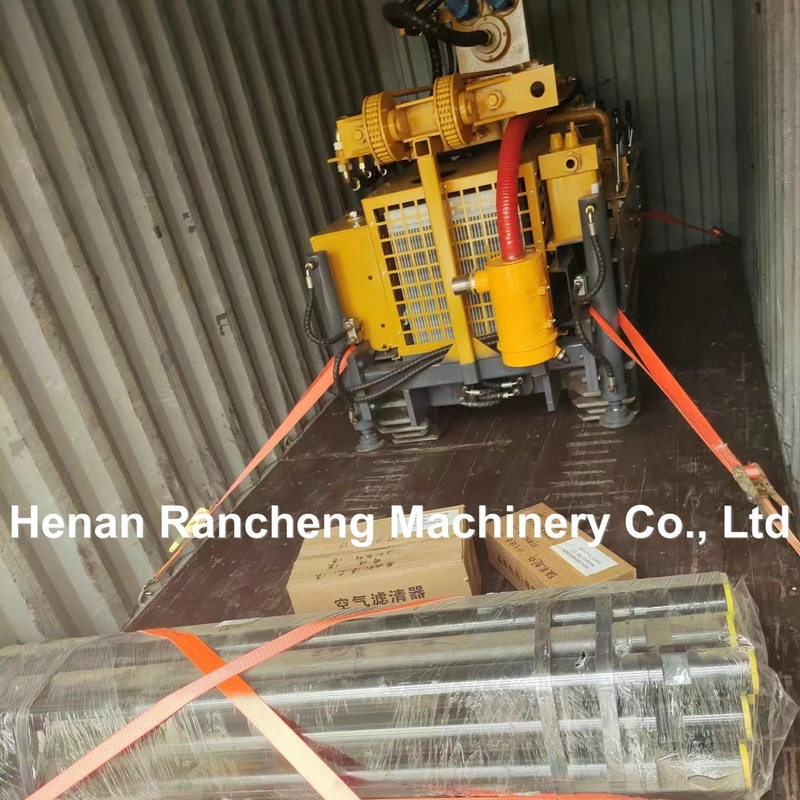

Transportation

RCF150S can be loaded into a 20-foot container and transported by sea.

RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine 7
RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine 8
RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine 9
RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine 10
