Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque

Hydraulic DTH drilling rig

3200 N.M rotation torque drilling rig

Surface down-the-hole DTH rig

Lieu d'origine:

Chine

Nom de marque:

RanCheng

Certification:

CE, ISO 9001:2000

Numéro de modèle:

Le modèle RCZ420T

Contactez-nous
Demande Une citation
Détails du produit
Moteur:
Yuchai YC4A100/70 kW, Chine II
Volume diesel de réservoir:
70 litres
profondeur du trou:
30m
Pipe de forage:
φ76*3000 mm
Diamètre du trou:
φ90-138 mm
Le marteau DTH:
4 pouces et 5 pouces
Le couple de rotation (max.):
3200 N.m
Mettre en évidence:

Hydraulic DTH drilling rig

,

3200 N.M rotation torque drilling rig

,

Surface down-the-hole DTH rig

Conditions de paiement et d'expédition
Quantité de commande min
1
Prix
US $18000-22000
Détails d'emballage
Expédition standard
Délai de livraison
10 à 15 jours ouvrables
Conditions de paiement
T/T, Western Union
Capacité d'approvisionnement
100 ensembles par mois
Description du produit

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque



Product Overview





The RCZ420T hydraulic down-the-hole drill rig is equipped with a dual-motor rotary drill head and a multi-function adjustable speed valve.



With a torque of up to 3200 Nm, it can meet the stringent drilling requirements of 76 mm drill rod and 138 mm hole diameter.

The 3 m drive length enables it to drill wider and deeper well sections.



With its high-quality construction crawler, piston engine and leveling function, it has excellent climbing ability and all-terrain performance. The 420 model is suitable for the most challenging construction site conditions.



It is capable of drilling vertical wells on slopes to meet various construction needs.


Technical Specifications

Model
RCZ420T
Engine
Yuchai YC4A100/70 kW, China II
Yuchai YC4DK100/73.5 kW, China III
Diesel tank volume
70 L
Weight
5280 kg
Dimension
5420*2308*2500 mm
Hole depth
30 m
Drill pipe
φ76*3000 mm
Hole diameter
φ90-138 mm
DTH hammer
4"/5"
Rotation torque (max.)
3200 N.m
Feed force
20 kN
Pull up force
45 kN
Feed type
Chain/cylinder
Gradient
25°
Track frame osciliation
+/- 10°
Tramming speed
3 km/h





Key Features



The dual motors rotate the drill bit with higher torque and speed, which can meet the drilling needs of 76 mm drill rod and 130 mm drill bit diameter.



High-quality crawler and piston engines provide more reliable performance and better maneuverability, allowing open-pit mining drilling operations to better adapt to complex ground conditions.



The central control panel is easy to use, which improves the efficiency, safety and comfort of drilling operations.



The new leveling function gives the machine stronger climbing ability and all-terrain performance, enabling it to adapt to various construction environments more effectively. The 420 model can also drill vertical holes on slopes to meet various construction needs.



Product Images

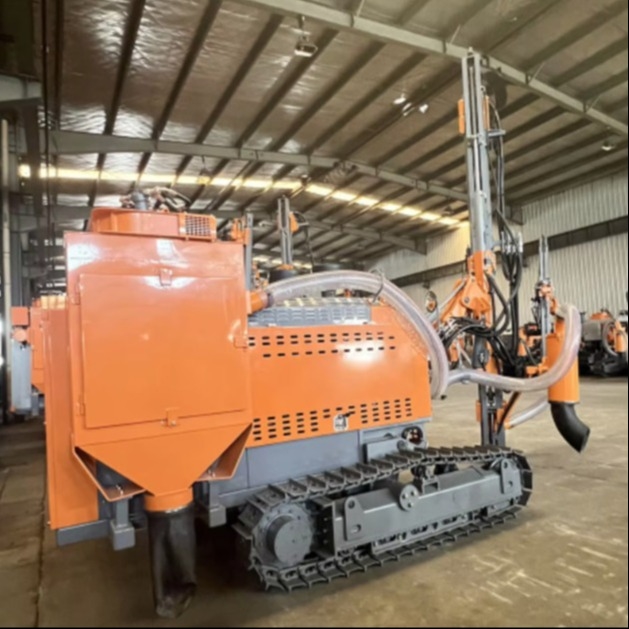

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque 0

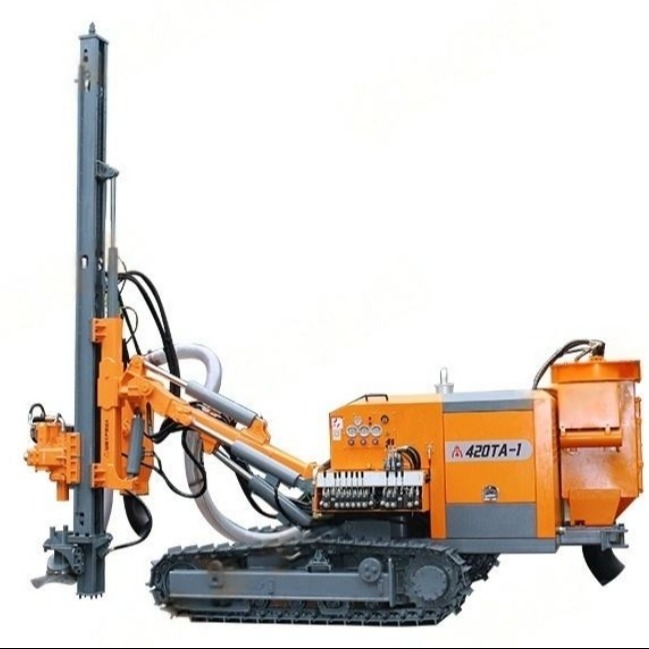

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque 1

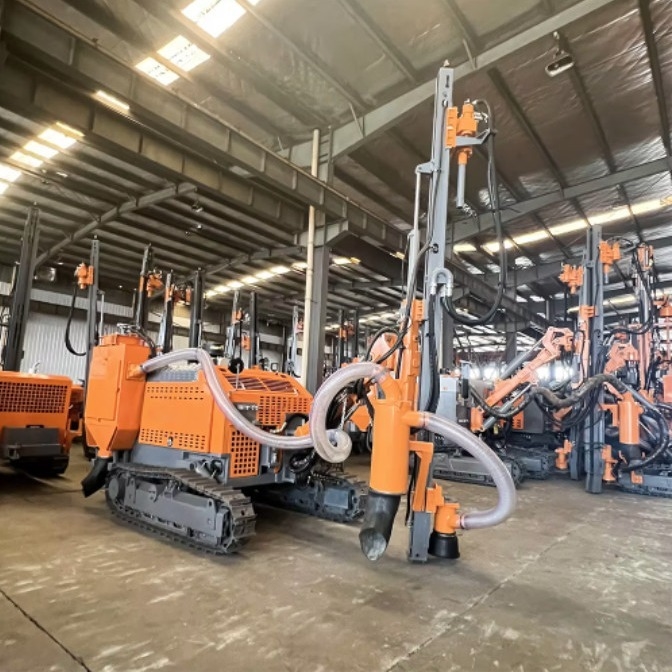

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque 2

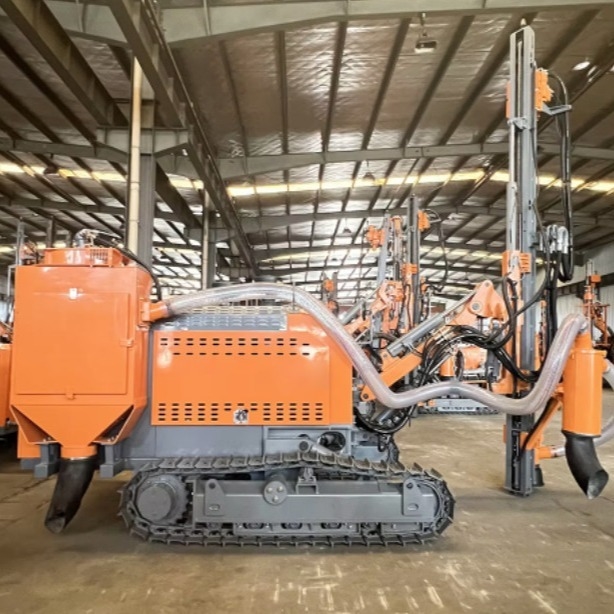

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque 3



Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque 4
