Name: 260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: Le nombre de pièces de rechange est le suivant:
Availability: InStock

Maison > produits > Machine de forage de forage >

260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment

260m depth hydraulic water well drilling machine

fully automatic borehole drilling equipment

wheel-mounted water well drilling machine

Lieu d'origine:

Chine

Nom de marque:

RanCheng

Certification:

CE, ISO 9001:2000

Numéro de modèle:

Le nombre de pièces de rechange est le suivant:

Contactez-nous

Demande Une citation

Détails du produit

nom:

Machine de forage à eau montée sur la roue hydraulique

Modèle:

Le nombre de pièces de rechange est le suivant:

Diamètre de forage (marteau):

90 à 350 mm

Profondeur de foret:

260m

Consommation d'air:

17 à 35 m3/min

Pression atmosphérique:

1.7-3.0Mpa

Mettre en évidence:

260m depth hydraulic water well drilling machine

fully automatic borehole drilling equipment

wheel-mounted water well drilling machine

Conditions de paiement et d'expédition

Quantité de commande min

Prix

Négociable

Détails d'emballage

Il peut être expédié par un conteneur de 20 "

Délai de livraison

10-15 jours ouvrables

Conditions de paiement

T / T, Western Union

Capacité d'approvisionnement

100sets par mois

Produits connexes

Vidéo

Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine for sale

Obtenez le meilleur prix

Vidéo

RCF300WT Hydraulic Tractor Mounted Water Well Drilling Machine 100HP

Obtenez le meilleur prix

Vidéo

260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment

Obtenez le meilleur prix

Vidéo

Machine de forage de forage à haute efficacité à quatre roues montée sur une remorque à forage à 220 m de profondeur Moteur puissant de 65 kW

Obtenez le meilleur prix

Contactez-nous

Contact maintenant

Description du produit

260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment

Machine Introduction

The RCF260W wheeled water well drill rig is lightweight, efficient, and versatile. It is primarily suitable for industrial and civil drilling, as well as geothermal drilling. Its compact design, fast drive, flexible maneuverability, and wide range of applications make it an ideal choice for water supply in mountainous areas and rock formations.

Our rigs are manufactured from high-quality materials and feature a modern, compact design, which improves efficiency, reduces failure rates, and offers excellent value for money. Thanks to positive customer feedback, our water well drill rigs have gained widespread market recognition.

This versatile water well drill rig can be used with an air compressor, a mud pump, or even standalone for dry hydraulic drilling. It is suitable not only for water well drilling, but also for all porous formation conditions.

Technical Parameters

Bore diameter(hammer)	90-350mm
Bore depth	260m
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Pipe diameter	76mm/89mm
Pipe length	1m,2m,3m
Push force	4T
Lifting force	15T
Lifting speed	2.5m/min
feeding speed	0.5-5m/min
Fast lifting speed	24m/min
Fast feeding speed	35m/min
Max torque of rotary	4000-5300Nm
Rotary speed	45-70r/min
Hoisting force of winch	1.5T
Mud Pump flow	20L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	4×1.85×2.3M
Weight	6500Kg
Diesel engine	70KW engine

Machine Application

This Water drilling machine is widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.

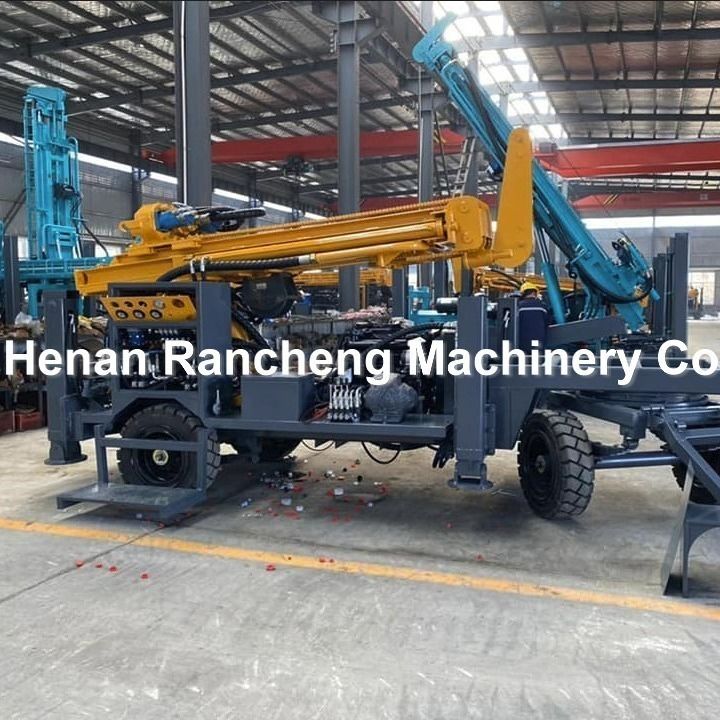

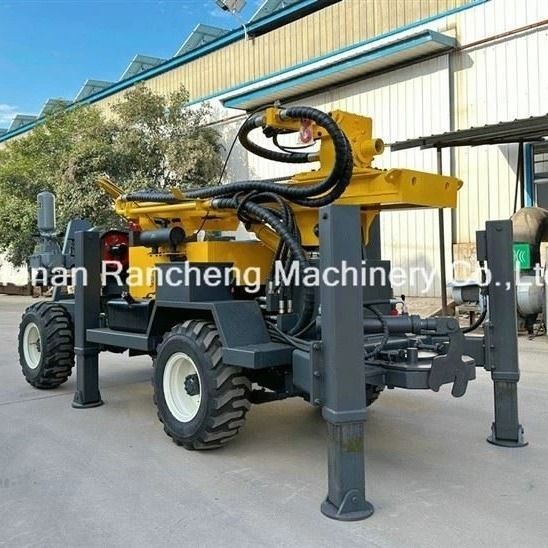

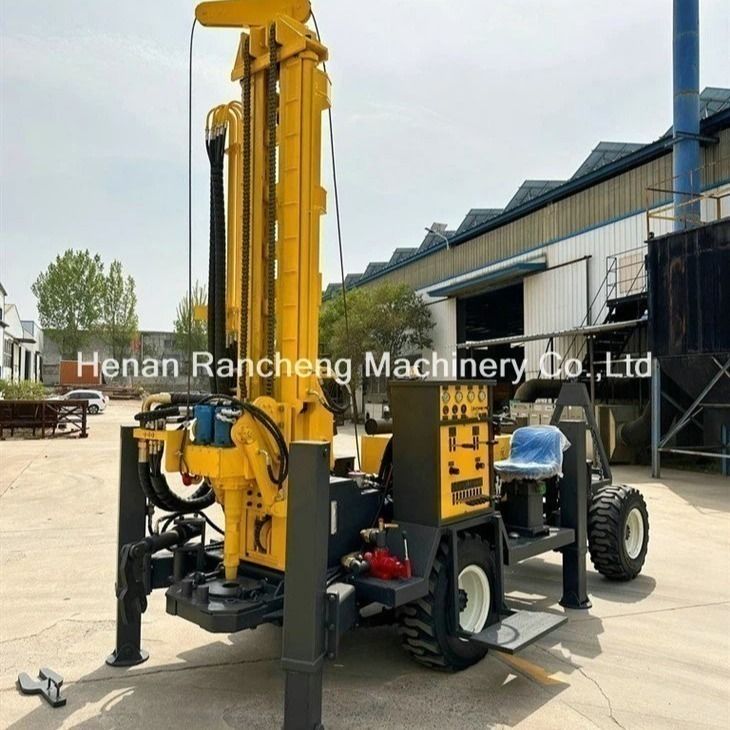

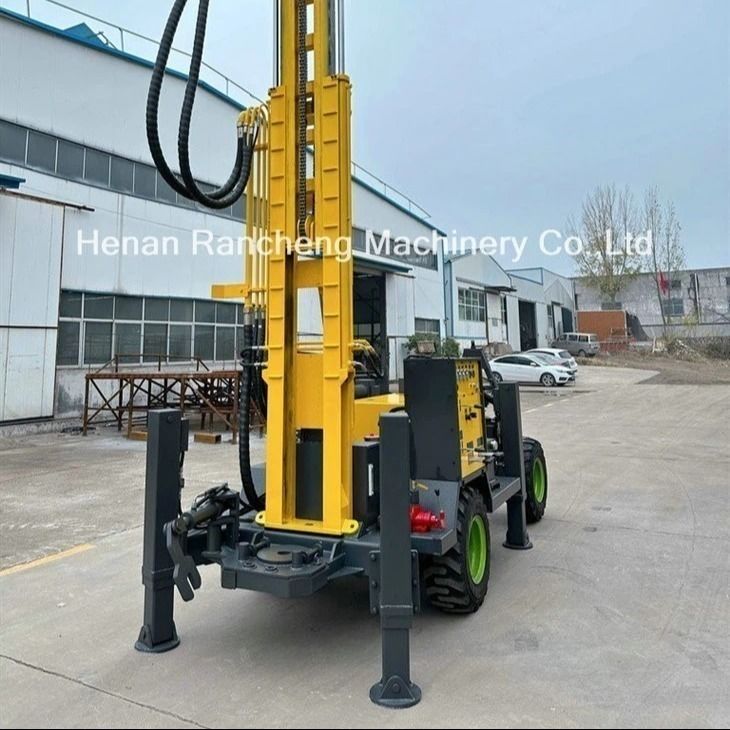

Machine Pictures

260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment 0
