Name: 350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF350C
Price: 34,860.00 USD
Availability: InStock

Maison > produits > Machine de forage de puits d'eau >

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine

350m hydraulic water well drill rig

portable crawler drilling rig machine

diesel borehole drilling equipment

Lieu d'origine:

CHINE

Nom de marque:

RanCheng

Certification:

CE, ISO 9001:2000

Numéro de modèle:

RCF350C

Contactez-nous

Demande Une citation

Détails du produit

Nom:

350m 450m 500m

Modèle:

RCF350C

Profondeur de forage:

350m

Consommation d'air:

17 à 36 m3/min

Pression atmosphérique:

1.7-3.5MPA

Dimension ((L*W*H):

6000 × 2000 × 2550 mm

Mettre en évidence:

350m hydraulic water well drill rig

portable crawler drilling rig machine

diesel borehole drilling equipment

Conditions de paiement et d'expédition

Quantité de commande min

Prix

USD29860-USD39860

Détails d'emballage

Il peut être expédié par un conteneur de 20 "

Délai de livraison

10-15 jours ouvrables

Conditions de paiement

T / T, Western Union

Capacité d'approvisionnement

100sets par mois

Produits connexes

Vidéo

RCF280C Machine de forage de puits d'eau en acier à rampe de forage de puits souterrains à 280 m de profondeur

Obtenez le meilleur prix

Vidéo

Vitesse de rotation 45-65 tr/min Yuchai 180m RCF180S Mini Foreuse de puits d'eau

Obtenez le meilleur prix

Vidéo

Foreuse de forage de puits de 200 m / Forage de puits / Machine de forage de puits d'eau pneumatique montée sur chenilles hydrauliques à vendre

Obtenez le meilleur prix

Vidéo

High-performance Yuchai 180m Bore Depth RCF180S Mini Water Well Drilling Machine

Obtenez le meilleur prix

Contactez-nous

Contact maintenant

Description du produit

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine

Product Description

The RCF350C deepwater well drilling rig is a product independently developed by our company.
Made of high-quality materials and featuring a stylish and compact design, our rig boasts higher efficiency, lower failure rates, greater cost-effectiveness and durability, and offers a superior overall cost-effectiveness. Our water well drilling rigs have been well-recognized in the market and received positive feedback from our customers.

Our water well drilling rigs utilize the latest models and advanced hydraulic technology, offering low energy consumption, high torque, and convenient well positioning. The combination of a new-generation down-the-hole hammer and increased pneumatic power significantly increases drilling speed.

Technical Parameters

Model	RCF350C
Bore diameter(Hammer)	140-350mm
Bore depth	350m
Air consumption	17-35m³/min
Air pressure	1.7-3.5Mpa
Pipe diameter	89mm/102mm
Pipe length	1m/2m/3m/6m
Lifting force	22T
Lifting speed	3m/min
feeding speed	0.5-5m/min
Fast lifting speed	30m/min
Fast feeding speed	50m/min
Max torque of the rotary	6200-8500Nm
Rotary speed	55-115r/min
Hoist lifting capacity	2T
Mud Pump flow	450L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	6000×2000×2550mm
Weight	8600Kg
Diesel engine	91KW Yuchai engine
Drilling way	Air compressor drilling or mud pump drilling
Operating system	Full hydraulic operation

Application

The water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.

After service

We offer 24 / 7 online chat and phone support to ensure you're always ready for help. In addition, we also provide lifetime free technical support, as well as overseas services, if you need it, we can send engineers to your site to provide support.

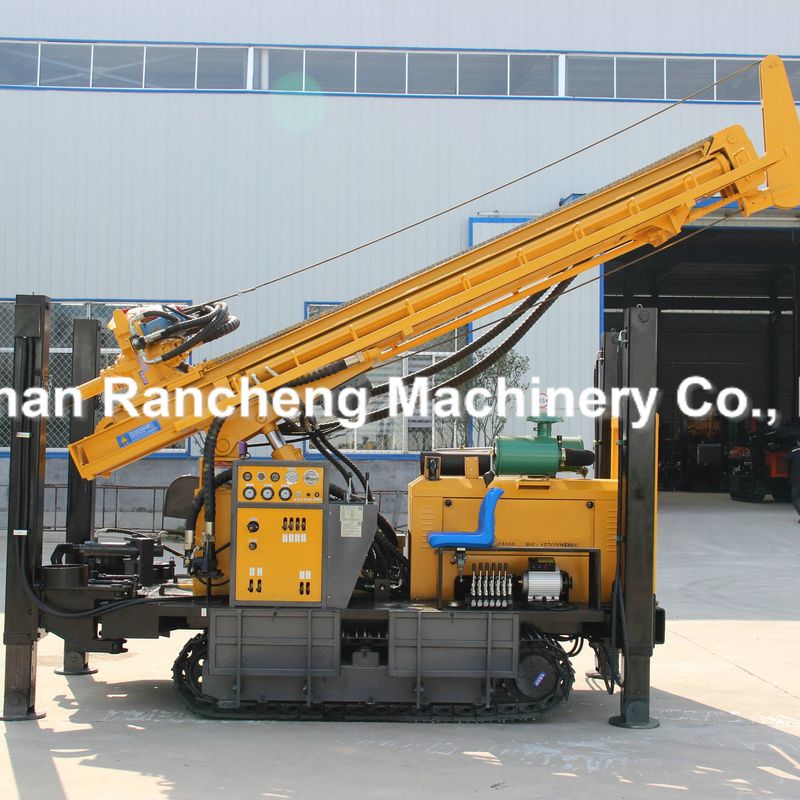

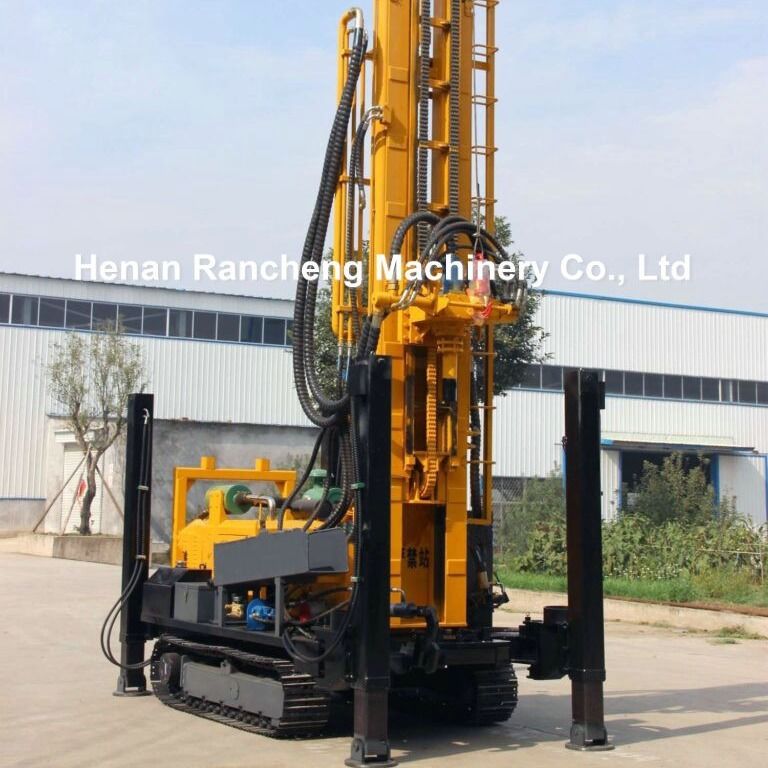

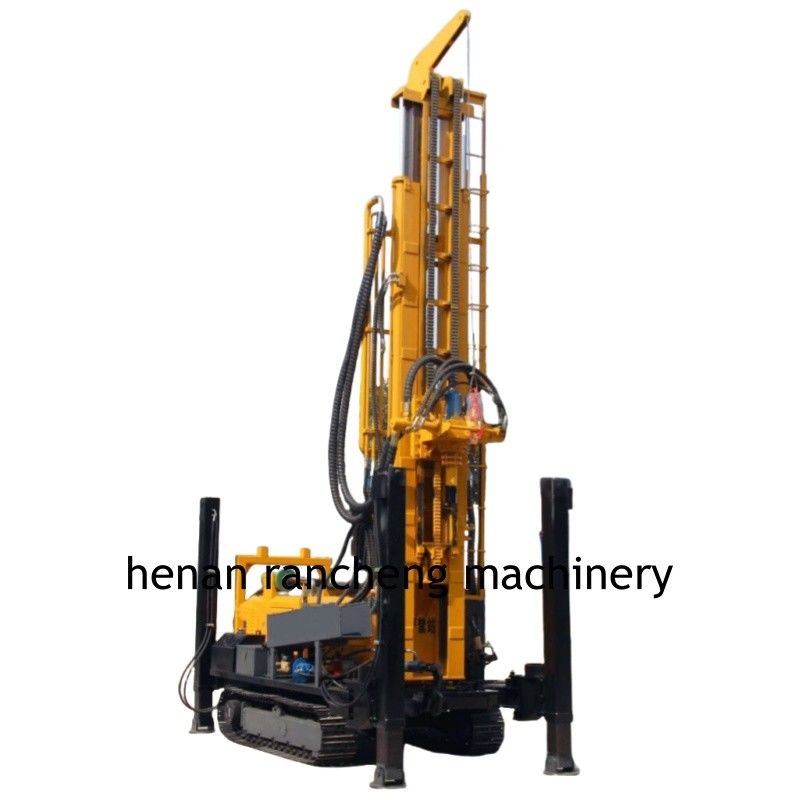

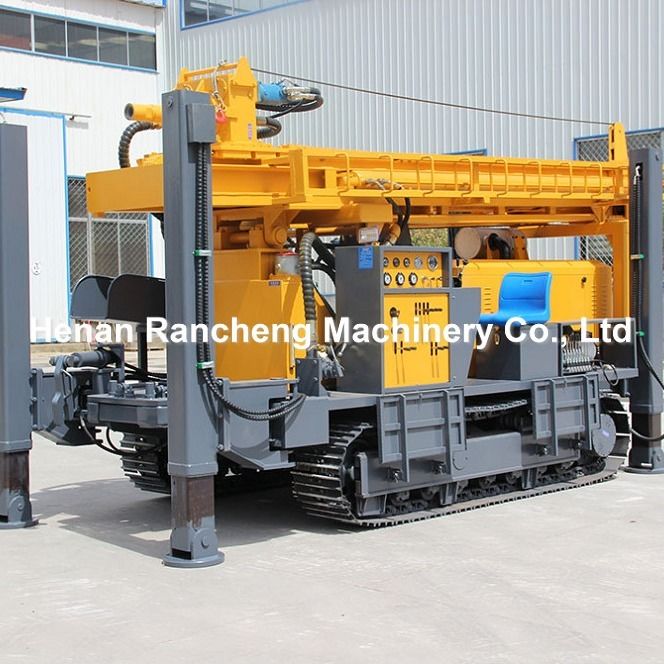

Machine picture display

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine 2
