150 / 300 / 500m Deep Underground Water Detector Geophysical Survey Equipment
Product Description
This multifunctional water source detector is a highly innovative exploration device. It utilizes unique electric field source technology combined with automated data processing capabilities, earning widespread acclaim in the geological exploration field.
This device solves the power supply issues often associated with traditional exploration. Leveraging advanced electrical exploration technology, it automatically generates exploration maps without the need for a computer. Its operation is also exceptionally simple, requiring only one or two people to complete the entire exploration task, with each data acquisition period taking only seconds to five minutes.
Its data acquisition accuracy is exceptionally high, reaching 0.001 millivolts, significantly enhancing the accuracy of detection results.
Advantage
1. Apply to multiple and complex terrain exploration
2. The instrument can automatic mapping and get result on site
3. Profile map shows aquifer and depth
4. Expert remote assistance to analysis well location
5. Inexperienced people can learn the operation in 5 minutes
Product Specifications
| Model No. |
Accuracy |
Channel |
Frequency |
LCD |
PS |
Other |
| 150m |
0.001mv |
4 |
Single,
Triple
33Frequency |
Industrial 7-inch HD touch screen |
DC12V 4000mAh
Built-in Battery |
1 . Powerful automatic noise reduction technology, excellent anti-interference performance.
2 . Intuitive user interface, fast CPU response, clear menu prompts.
3 . One-click automatic measurement, instant data storage, and automatic curve drawing.
4 . Data is automatically saved when you turn off the machine, so you don’t have to worry about losing it.
5 . Store up to 999 sets of data to meet a large number of measurement needs.
6 . Data can be easily imported into the computer for quick drawing analysis.
7 . Portable design, using rechargeable batteries, with electrode detection and power display functions, making it safer to use.
|
| 300m |
0.001mv |
6 |
Single ,
Triple ,
40 Frequency |
Industrial 7-inch HD touch screen |
DC12V
4000mAh
Built-in Battery |
| 500m |
0.001mv |
8 |
Single,
Triple,
56 Frequency |
Industrial 7-inch HD touch screen |
DC12V 4000mAh
Built-in Battery |
Product Features
This measurement system has the main characteristics of high speed and efficiency, easy portability, simple operation, high accuracy, strong anti - interference ability and one - click drawing, and has achieved a comprehensive innovation in the field of geological exploration. It can complete profile measurements of more than 8,000 meters in one day, which is about 10 times faster than traditional resistivity methods. The equipment is lightweight and the complete set weighs less than 2 kilograms, making it easy to carry. It is easy to operate and is automatically controlled by a micro PC. Even a novice can master it within 10 minutes. Its measurement resolution is as high as 0.001mV, accuracy is ± 2 %, and its stability is comparable to traditional equipment. The system has advanced anti - interference technology and can work in various complex environments. There is also a one - click drawing function, which automatically generates a graph after data collection, without additional operations. In addition, the system supports four languages: Chinese, English, French, and Arabic to meet the needs of users in different regions.
FAQ
Q:Are you the manufacturer?
A: Yes, we are the factory with more than 10 years of manufacturing experience.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty. And we provide videos for machine install and operation.
Q: How long is your delivery time?
A: About 10-15 work days after receipt of the payment.
Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;
Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE and ISO 9001:2000.

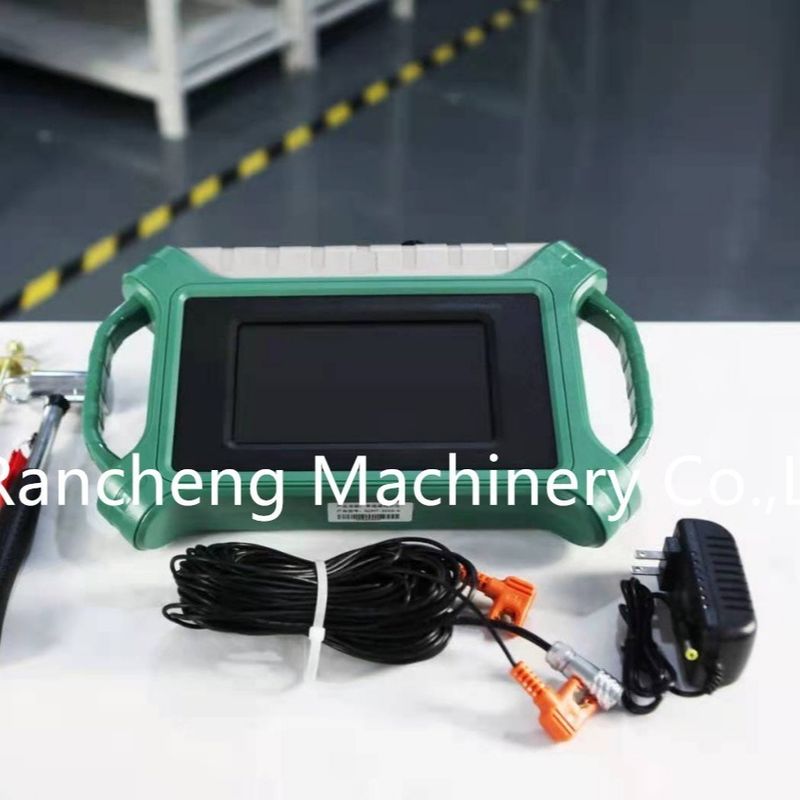

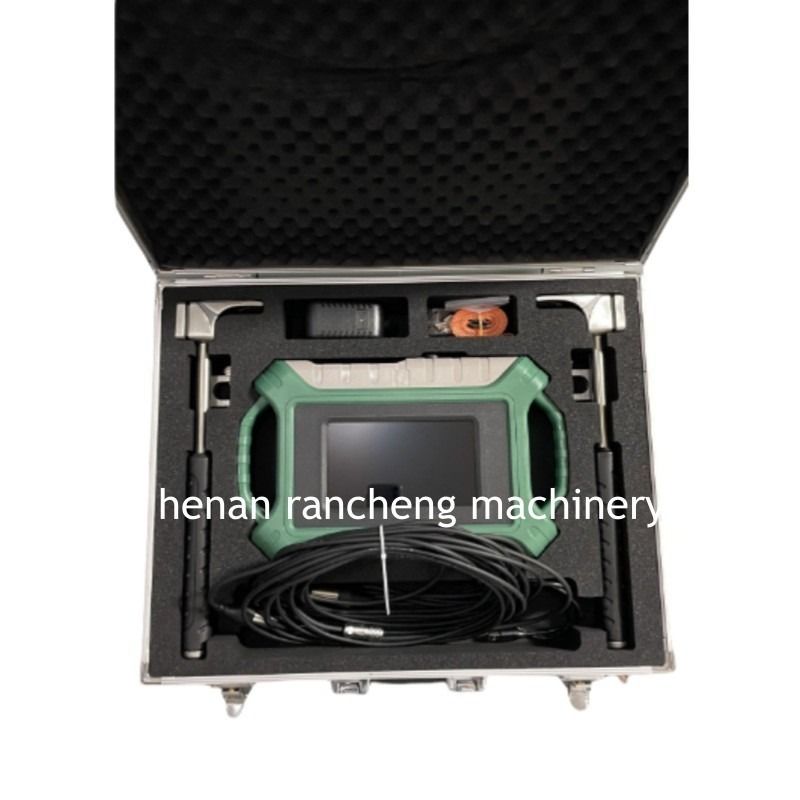

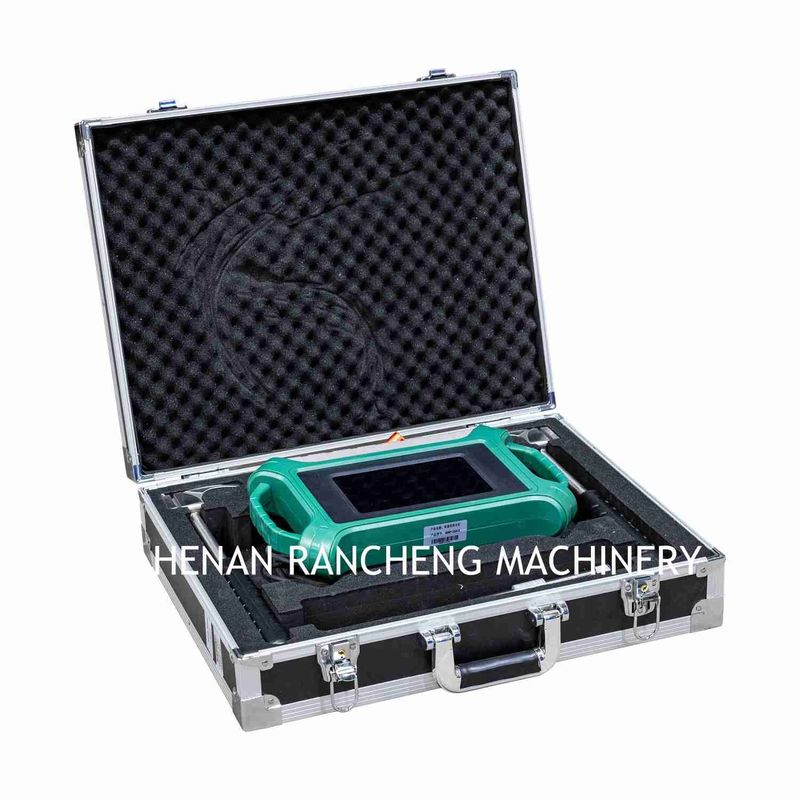

Product Image
