Crawler Mounted Full Hydraulic Core Drilling Rig Underground With 77.3KW Yuchai Engine

Crawler mounted core drilling rig

Full hydraulic core drilling rig

Core drilling rig with Yuchai engine

Lieu d'origine:

CHINE

Nom de marque:

RanCheng

Certification:

CE, ISO 9001:2000

Numéro de modèle:

Rcky-2a

Contactez-nous

Demande Une citation

Détails du produit

Profondeur de foret:

150m (à haute vitesse)

Modèle de moteur diesel:

Moteur Yuchai 4 cylindres 77,3 kW

Vitesse nominale:

2200rpm

Force de levage:

200KN

Mettre en évidence:

Crawler mounted core drilling rig

Full hydraulic core drilling rig

Core drilling rig with Yuchai engine

Conditions de paiement et d'expédition

Quantité de commande min

Prix

USD15000-USD16000

Détails d'emballage

Expédition standard

Délai de livraison

10-15 jours ouvrables

Conditions de paiement

T / T, Western Union

Capacité d'approvisionnement

100sets par mois

Produits connexes

Vidéo

Foreuse de carottage RCJ1000C pour diamant de mine de roche, foreuse géotechnique, foreuse d'exploration

Obtenez le meilleur prix

Vidéo

Foreuse de carottage BTW 1800m entièrement hydraulique avec moteur Cummins 154KW

Obtenez le meilleur prix

Vidéo

Foreuse de carottage hydraulique 600m-1000m de profondeur avec NQ/BQ/HQ/PQ

Obtenez le meilleur prix

Vidéo

Foreuse à carottage diamanté pneumatique entièrement hydraulique pour l'échantillonnage des sols et l'exploitation minière

Obtenez le meilleur prix

Contactez-nous

Contact maintenant

Description du produit

Crawler Mounted Full Hydraulic Core Drilling Rig Underground With 77.3KW Yuchai Engine

Name: Crawler Mounted Full Hydraulic Core Drilling Rig Underground With 77.3KW Yuchai Engine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: Rcky-2a
Price: 15,500.00 USD
Availability: InStock

Machine Introduction

The series full hydraulic core drilling rig is a new type developed by our company on the basis of referring to the advanced technology of similar drilling rigs at home and abroad rig. The drilling rig is driven by full hydraulic pressure, the rotation of the power head is driven by an axial plunger pump and an inclined-axis plunger motor, two mechanical gears plus stepless speed regulation, and an advanced structure.

The power head adopts an oil cylinder chain double-speed feeding mechanism, which is stable and reliable in movement, and has a lateral translation mechanism of the power head. The mast adopts an oil cylinder to lift and fall to slide as a whole, and can drill holes within the range of 0-90°. The hydraulic system adopts load sensitive control, with high working efficiency and large torque.Remote control crawler, suitable for various terrains, control the crawling of the drilling rig within a safe distance to prevent sudden danger.

Technical Parameters

RCKY-2A full hydraulic core drilling rig
Working stratum	Loose soil layer and bed rock(hardness:F6~20)
Drilling capacity	BTW (m)	280
	NTW (m)	200
	HTW (m)	150
Hydraulic system	Rated pressure Mpa	32+16
	Cooling way	secondary air cooling plus primary water cooling
Power	Diesel engine model	Yuchai engine 4 cylinders 77.3KW
	Rated power	77.3KW
	Rated speed	2200rpm
Rotary head	Max torque	1400N.m
	rotary speed	0-1400rpm
	Feeding stroke	1.5-3.4m
	through-hole	95
	Lifting force	200KN
	Feeding force	120KN
Wireline hydraulic Winch capacity	Rope capacity	300m
	Lifting force	1.5T
	Lifting speed	110m/min
	Rope diameter	5mm
Mast	Full height	6.1m
	Drilling angle	40-90°
Clamp (hydraulic )	through-hole	75mm/91mm/115mm
Mud pump (hydraulic )	Model	BW100
	type	Horizontal three cylinder reciprocating single acting piston pump
	Cylinder diameter	65mm
	stroke	50mm
	Pump speed (times/min)	220	156	115
	Flow (L/min)	90	65	50
	Pressure (Mpa	1	2	3
	Outlet pipe diameter	25mm
	Inlet pipe diameter	38mm
Crawler chassis	Walking speed	0~2km/h
	Climbing angle	25°-30°
Dimension	Transport	600023002200mm
Weight		4000kg

Machine Advantages

Application

It is mainly suitable for drilling solid mineral deposits, and can also be used for engineering geology, shallow oil, natural gas, groundwater drilling, and can also be used for drilling holes for tunnel ventilation, drainage and dam grouting.

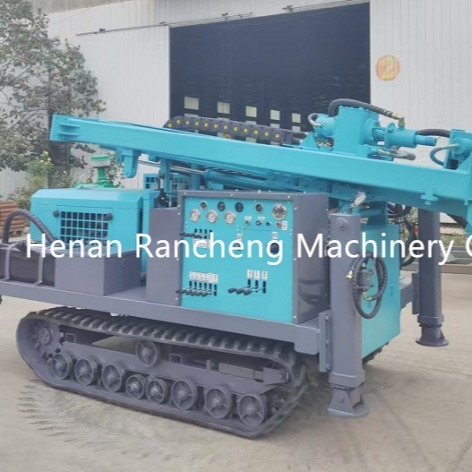

Crawler Mounted Full Hydraulic Core Drilling Rig Underground With 77.3KW Yuchai Engine 0

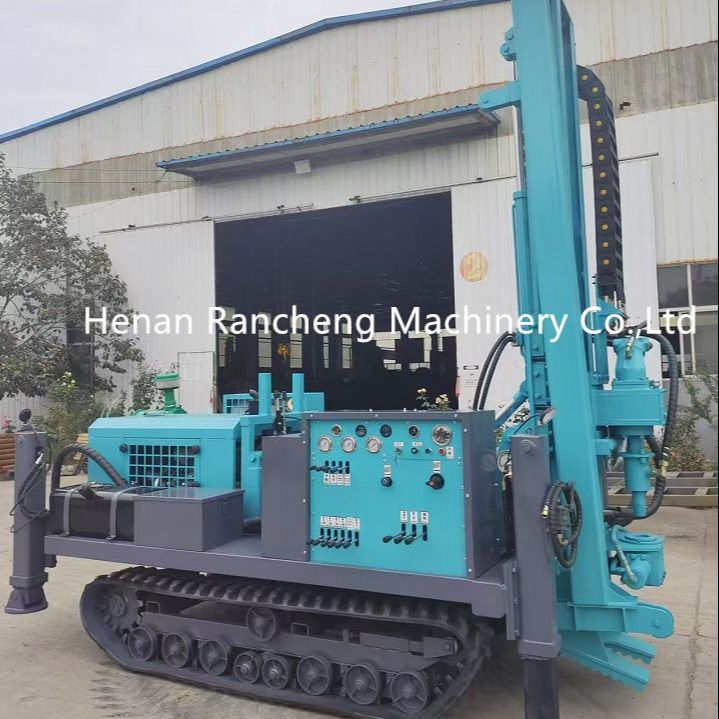

Crawler Mounted Full Hydraulic Core Drilling Rig Underground With 77.3KW Yuchai Engine 1
