Name: 300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCQ-1
Price: 8,500.00 USD
Availability: InStock

Maison > produits > Équipement d'enquête géophysique >

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy

300m borehole water well log tool

geophysical equipment apparent resistivity measurement

borehole log tool 1% accuracy

Lieu d'origine:

CHINE

Nom de marque:

RanCheng

Certification:

CE, ISO 9001:2000

Numéro de modèle:

RCQ-1

Contactez-nous

Demande Une citation

Détails du produit

Alimentation externe:

AC 220V ± 20%, 50 Hz, 20W

Condition de travail:

Température: -20 ºC ~ +40 ºC, humidité ≤ 90%

Alimentation AB:

6 ~ 60V, 0 ~ 200mA, onde carrée AC

Système d'électrode applicable:

A1,6 M 0,4N

Plage de mesures de résistivité apparente:

1-2000Ωm

Précision de mesure de résistivité apparente:

1% (échelle)

Mettre en évidence:

300m borehole water well log tool

geophysical equipment apparent resistivity measurement

borehole log tool 1% accuracy

Conditions de paiement et d'expédition

Quantité de commande min

Prix

US $ 7000-10000

Détails d'emballage

Il peut être expédié par un conteneur de 20 "

Délai de livraison

10-15 jours ouvrables

Conditions de paiement

T / T, Western Union

Capacité d'approvisionnement

100sets par mois

Produits connexes

Vidéo

Digital Logging System Specially Designed For The Convenience Of Field Work

Obtenez le meilleur prix

Vidéo

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy

Obtenez le meilleur prix

Vidéo

Équipement de diagraphie de puits d'eau de diagraphie géophysique, outil de diagraphie de puits, équipement de diagraphie de trou de forage géotechnique, outil d'étude de trou de forage à vendre

Obtenez le meilleur prix

Vidéo

300m Équipement géophysique Forage de puits d'eau Outil d'enregistrement de la résistance apparente Système de mesure de l'enregistrement

Obtenez le meilleur prix

Contactez-nous

Contact maintenant

Description du produit

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy

Product Description

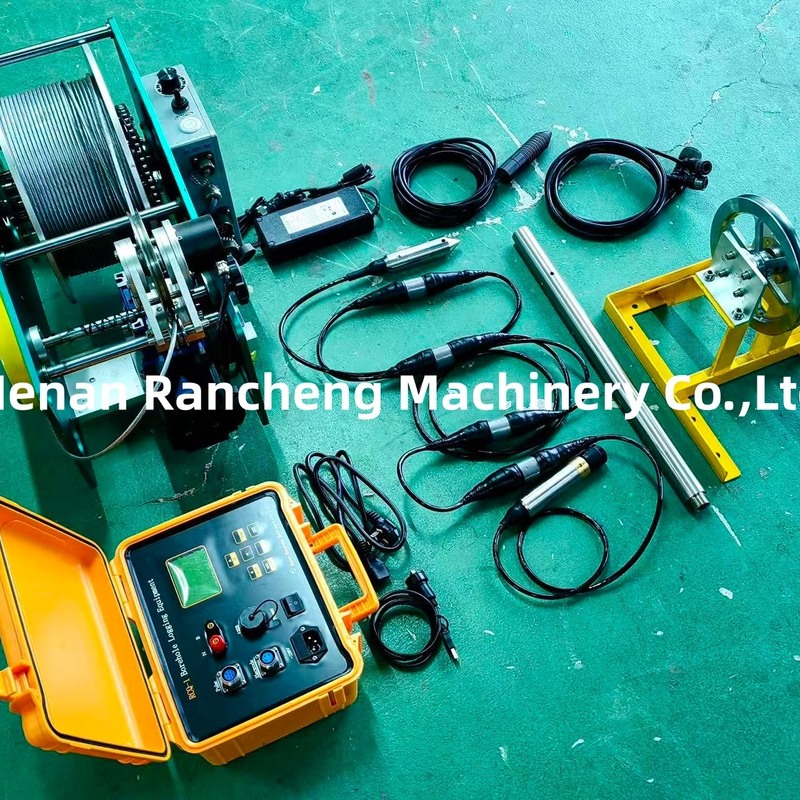

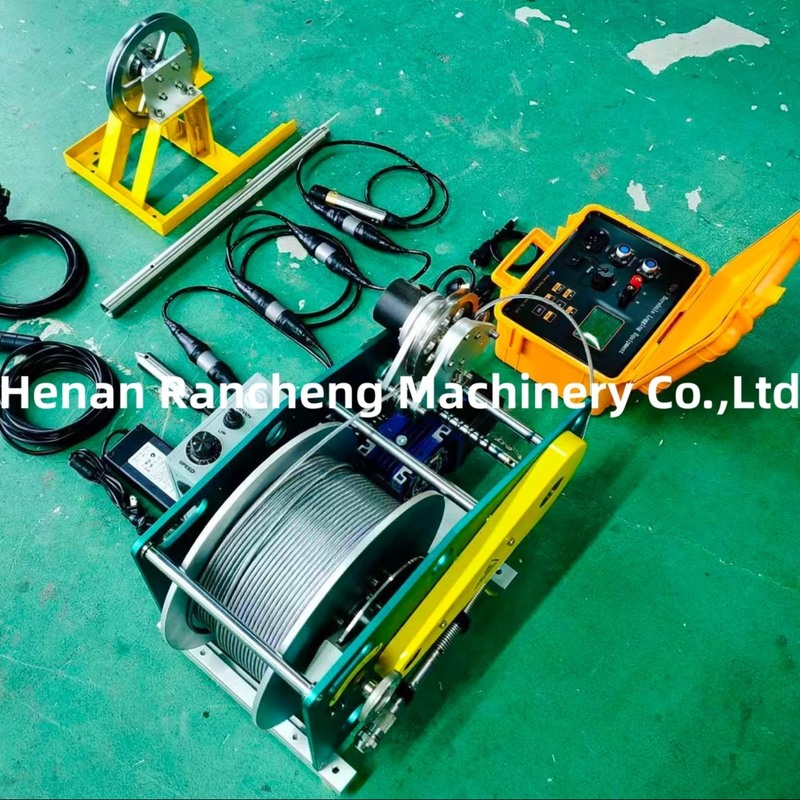

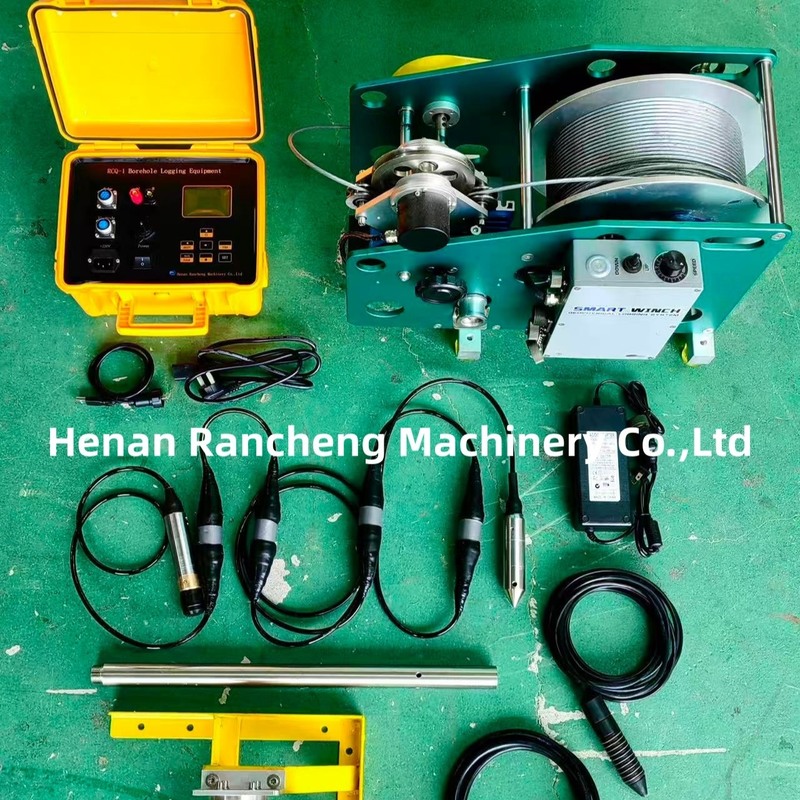

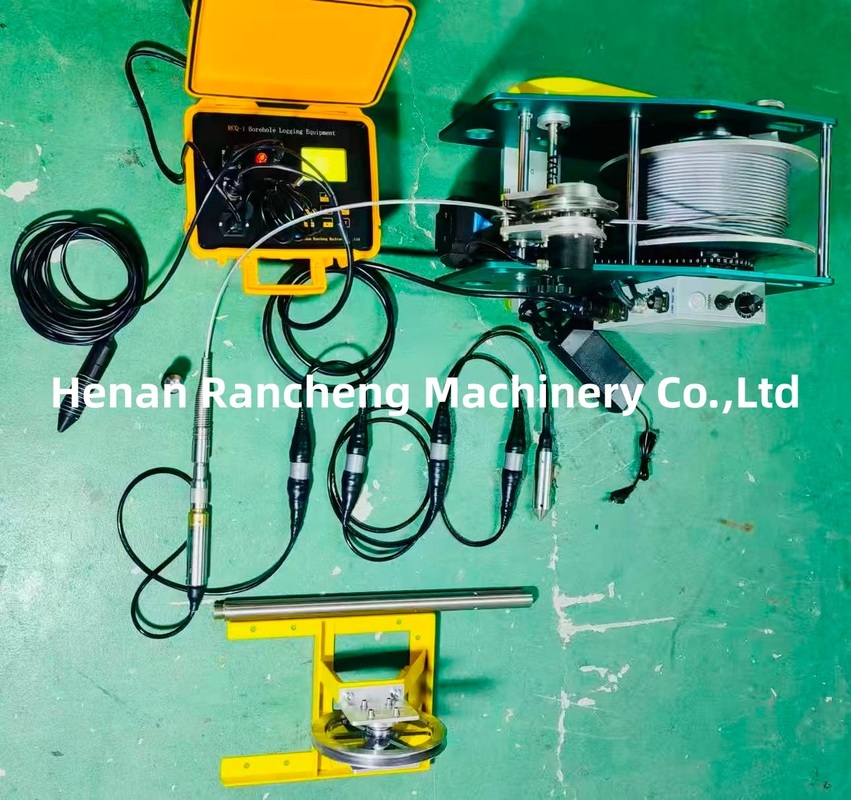

The RCQ-1 Geophysical Coring Drill is a reliable geophysical coring instrument for measuring apparent resistivity and spontaneous potential in boreholes. It consists of a surface instrument, a Kevlar cable, an electric winch, and a probe with downhole electrodes, ensuring accurate and stable data acquisition. The system utilizes an adaptive power supply scheme, delivering an AC square wave to the formation while simultaneously measuring current and voltage. This enables accurate resistivity recording over a wide measurement range.

The RCQ-1 is lightweight and easy to use, connecting directly to a PC for real-time data recording, transmission, and plotting. It is widely used in applications requiring reliable borehole resistivity data, such as groundwater exploration, mineral exploration, engineering geology, and geotechnical investigations.

Technical Specifications

No.	Item	Parameter
1	External Power Supply	AC 220V ± 20%, 50Hz, 20W
2	Working Condition	Temperature: -20 ºC ~ +40 ºC, humidity ≤ 90%
3	AB Power Supply	6~60V, 0~200mA, AC square wave
4	Applicable Electrode System	A1.6M 0.4N
5	Apparent Resistivity Measurement Range	1-2000Ωm
6	Apparent Resistivity Measurement Accuracy	1% (scale)
7	Natural Potential Measurement Range	±1200mv
8	Natural Potential Measurement Accuracy	1%
9	Signal Output	USB interface
10	Depth Measurement	0 ~ 9999.99 meters
11	Depth Measurement Accuracy	better than 0.1%
12	Speed Measurement Range	0 ~ 9999 meters / hour
13	Speed Measurement Accuracy	better than 5%


300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy 0

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy 1

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy 2

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy 3

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy 4

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy 5
