Name: Fully hydraulic 800-meter water well drilling rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF800C
Availability: InStock

Maison > produits > Machine de forage de puits d'eau >

Fully hydraulic 800-meter water well drilling rig

fully hydraulic water well drilling rig

800-meter water well drilling machine

hydraulic well drilling rig with warranty

Lieu d'origine:

Chine

Nom de marque:

RanCheng

Certification:

CE, ISO 9001:2000

Numéro de modèle:

RCF800C

Contactez-nous

Demande Une citation

Détails du produit

Nom:

Machine à forage de puits d'eau

Modèle:

RCF800C

Géologie forée:

Tout genre

Système de forage et fonctionnement:

Hydraulique

Profondeur de trou maximum:

800m

Diamètre du trou:

140-500m

Moteur diesel:

154KW Cummins

Dimension:

6300 × 2300 × 2650 mm

Mettre en évidence:

fully hydraulic water well drilling rig

800-meter water well drilling machine

hydraulic well drilling rig with warranty

Conditions de paiement et d'expédition

Quantité de commande min

Prix

Négociable

Détails d'emballage

Il peut être expédié par un conteneur de 40 "

Délai de livraison

10-15 jours ouvrables

Conditions de paiement

T/T, Western Union

Capacité d'approvisionnement

100sets par mois

Produits connexes

Vidéo

Fully hydraulic 800-meter water well drilling rig

Obtenez le meilleur prix

Vidéo

Upgrade RCF350C Water Well Drilling Machine With Drill Rod Rack For Water Borehole Drilling

Obtenez le meilleur prix

Vidéo

Fully hydraulic crawler-type 400-meter water well drilling rig 140 - 350mm Drilling Dia

Obtenez le meilleur prix

Vidéo

RCF260C Foreuse sur chenilles pour puits d'eau, forage rotatif hydraulique, trou de forage, 70 kW, machine de forage de puits d'eau diesel

Obtenez le meilleur prix

Contactez-nous

Contact maintenant

Description du produit

Fully hydraulic 800-meter water well drilling rig

Machine Introduction

This drilling rig is a high-performance piece of equipment specifically designed for deep-hole drilling operations. Its core utilizes a fully hydraulic drive system, matched with a high-torque power head and feed system, delivering powerful output and stepless adjustment of speed and pressure to easily overcome complex geological conditions such as hard rock formations.

The entire machine integrates electro-hydraulic control for centralized and convenient operation, and is equipped with a hydraulic automatic unhooking device, significantly improving drilling efficiency and safety. Employing a modular or vehicle-mounted chassis design, it offers flexible relocation and adaptability to harsh field conditions. Primarily used in large-scale projects such as ultra-deep water wells, geothermal exploration, and mineral exploration, it is an ideal solution for efficiently and reliably completing deep-hole drilling tasks.

Specification

Model	RC800C
Drilling way	Both mud pump drilling and air DTH drilling
Geology drilled	All kind
Drill system and operation	Hydraulic
Diesel engine	154KW Cummins
Max hole depth	800m
Hole diameter	140-500mm
Air consumption	17-42m³/min
Length of drilling pipe	1m/2m/3m/6m
Diameter of drilling pipe	102/108/114mm
Total Weight	13ton
Dimension (L * W * H)	6300×2300×2650mm

Applications

1. The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life;
2. The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost;
3. It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little damage to hard road surface;
4. big power ensure the deep drilling

Machine Pictures

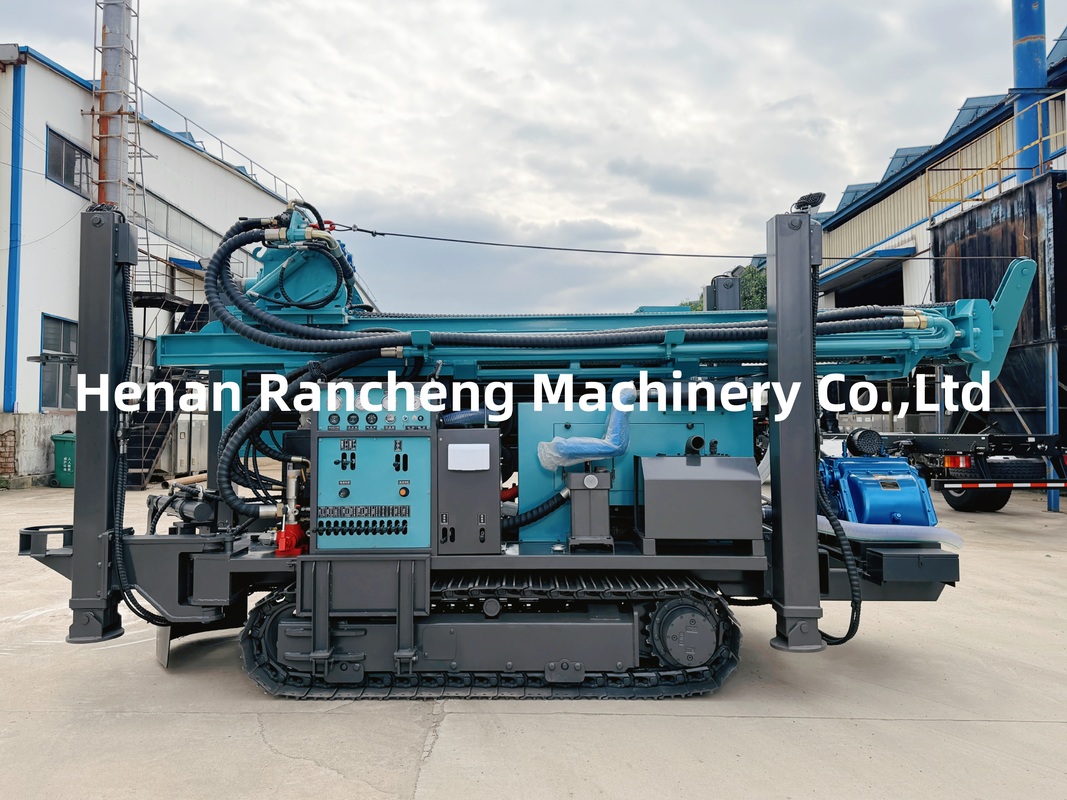

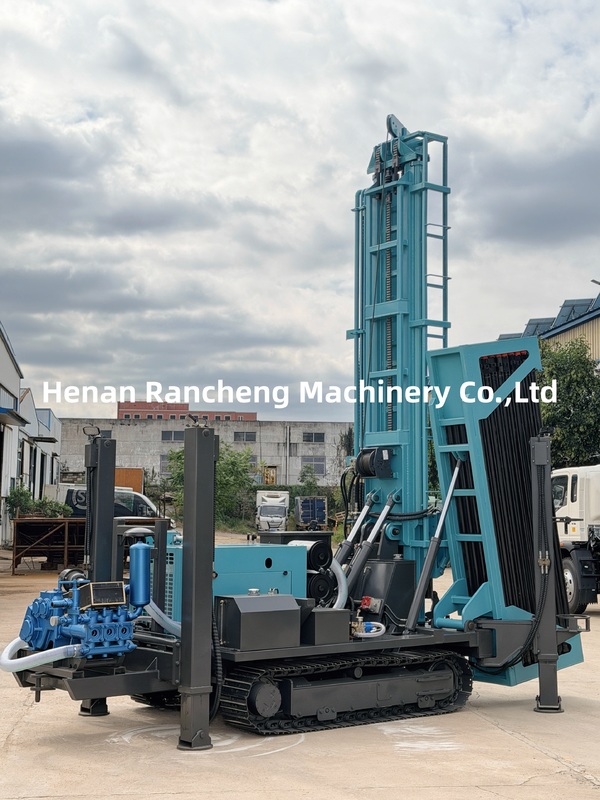

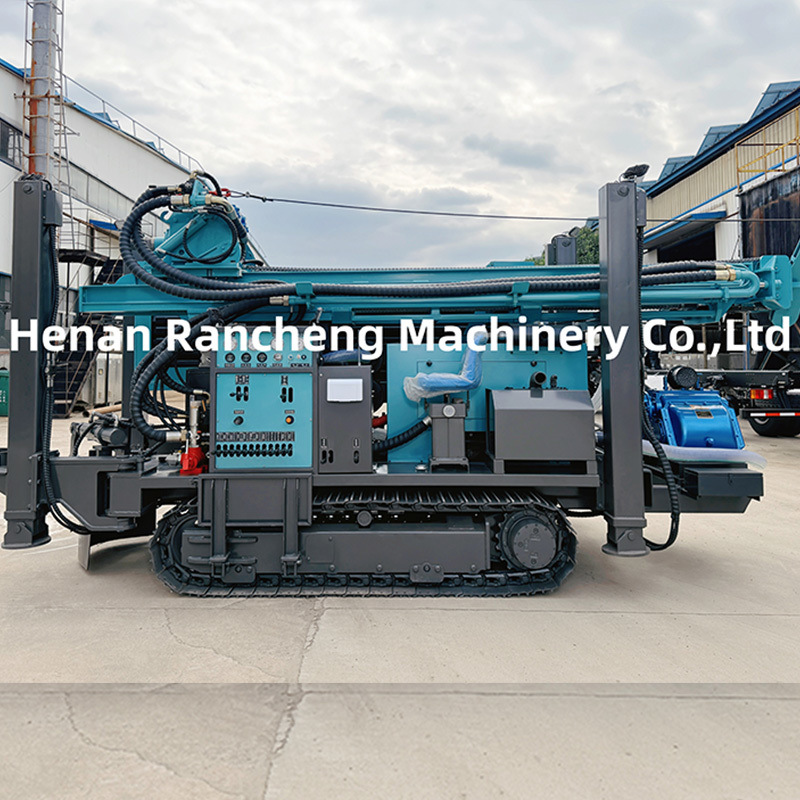

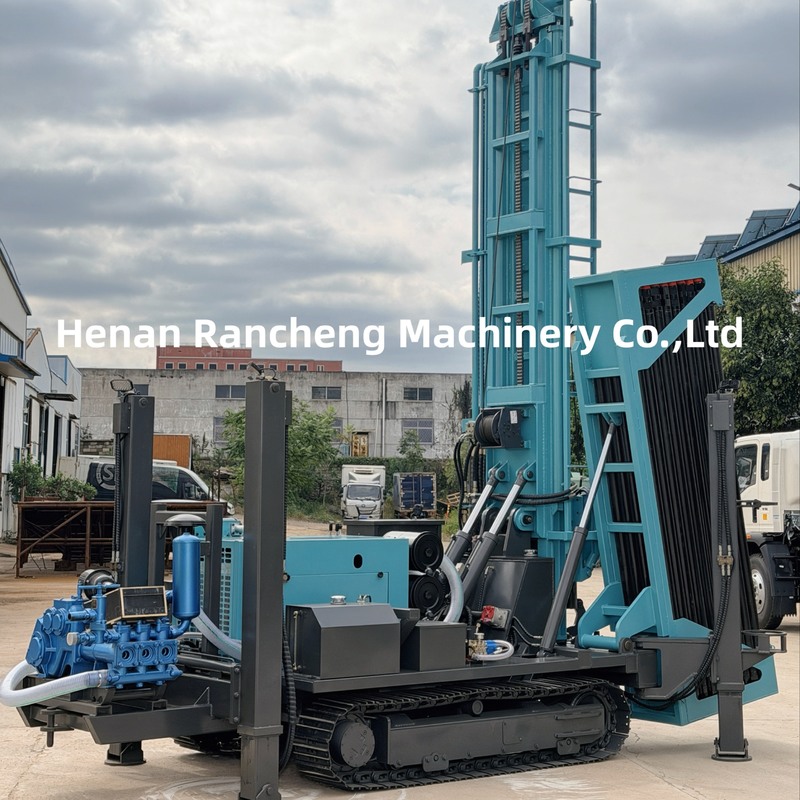

Fully hydraulic 800-meter water well drilling rig 0
