Name: RCF400C Is A Professional 400-Meter Multi-Functional Deep Water Well Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: Le numéro de série RCF400
Availability: InStock

Maison > produits > Machine de forage de puits d'eau >

RCF400C Is A Professional 400-Meter Multi-Functional Deep Water Well Drilling Rig

400-meter deep water well drilling rig

professional water well drilling machine

multi-functional deep well drilling rig

Lieu d'origine:

Chine

Nom de marque:

RanCheng

Certification:

CE, ISO 9001:2000

Numéro de modèle:

Le numéro de série RCF400

Contactez-nous

Demande Une citation

Détails du produit

Diamètre du tuyau:

89 mm/102 mm

Diamètre de forage (marteau):

140-350mm

Profondeur de forage:

barrière de protection des bords

Capacité de levage de levage:

Le couple maximal du rotor:

6200 à 9000 Nm

Moteur diesel:

Moteur Yuchai de 92 kW

Mettre en évidence:

400-meter deep water well drilling rig

professional water well drilling machine

multi-functional deep well drilling rig

Conditions de paiement et d'expédition

Quantité de commande min

Prix

Négociable

Détails d'emballage

Il peut être expédié par un conteneur de 20"

Délai de livraison

10-15 jours ouvrables

Conditions de paiement

T/T, Western Union

Capacité d'approvisionnement

100sets par mois

Produits connexes

Vidéo

Petit cylindre de forage hydraulique à 160 m de profondeur, machine de creusement d'eau, ramponneur, puits d'eau monté, puits de forage

Obtenez le meilleur prix

Vidéo

Machine de forage de puits d'eau de 1000 m de profondeur 105 mm - 800 mm Dia 179KW Rig de forage de puits profonds

Obtenez le meilleur prix

Vidéo

Équipement hydraulique pneumatique pour le forage de puits d'eau Profondeur de forage de 500 m Moteur de 118 kW

Obtenez le meilleur prix

Vidéo

Équipement de forage de puits d'eau à 800 m de profondeur 153 kW Moteur 140 mm - 500 mm de diamètre

Obtenez le meilleur prix

Contactez-nous

Contact maintenant

Description du produit

RCF400C Is A Professional 400-Meter Multi-Functional Deep Water Well Drilling Rig

The RCF400C deep-water well drilling rig is a new generation of drilling equipment independently developed by our company. The machine is equipped with a high-power down-the-hole (DTH) pneumatic power unit, integrated with an advanced hydraulic system, offering such advantages as rapid drilling speeds, low energy consumption, high rotational torque, and convenient hole deviation correction.

Constructed from high-quality raw materials, the unit features a compact and streamlined body structure; it operates with exceptional stability, exhibits a low failure rate, and offers outstanding durability, cost-effectiveness, and overall value. This model is widely applicable to various drilling projects, including resource exploration, hydrogeological drilling, the construction of civil drinking water wells, and agricultural irrigation systems. Thanks to its superior performance capabilities, the equipment has successfully passed rigorous field testing and has garnered unanimous recognition and acclaim from clients worldwide.

Technical Specifications

Parameter	Specification
Bore Diameter (Hammer)	140-350mm
Bore Depth	400m
Air Consumption	17-36m³/min
Air Pressure	1.7-3.5Mpa
Pipe Diameter	89mm/102mm
Pipe Length	1.5m/2m/3m/6m
Lifting Force	22T
Lifting Speed	3m/min
Feeding Speed	0.5-5m/min
Fast Lifting Speed	20m/min
Fast Feeding Speed	40m/min
Max Torque of Rotary	6200-9000Nm
Rotary Speed	66-135r/min
Hoist Lifting Capacity	2T
Mud Pump Flow	450L/min (option)
High Hydraulic Leg	1.4m
Feeding Efficiency	15-35m/h
Travel Speed	2.5Km/h
Climb Ability	30°
Dimension (L×W×H)	6000×2100×2550mm
Weight	9200Kg
Diesel Engine	92KW Yuchai Engine
Drilling Method	Air Compressor Drilling or Mud Pump Drilling

Key Features & Benefits

1. Fully Hydraulic, Flexible Control: Efficient and Hassle-Free Operation
The machine features a fully hydraulic top-drive design, allowing for independent adjustment of rotation speed, torque, and axial pressure. Drill pipe assembly and disassembly are simple, minimizing auxiliary operation time. Compatible with a wide range of drilling techniques, it delivers rapid drilling speeds and high construction efficiency.
2. High Adaptability, Lower Construction Costs
It supports various drilling methods—including DTH (Down-the-Hole), reverse circulation, and core drilling—and is compatible with a wide array of accessories. Equipped with crawler tracks and extended outriggers, it navigates muddy terrain smoothly and can self-load and unload without the need for a crane. The DTH drilling process lowers the cost per meter of drilling, offering exceptional value for money.
3. Premium Configuration: Stable and Durable Performance
Core hydraulic components are sourced from renowned brands, while the machine body is constructed from high-strength steel. It supports both positive and negative axial pressure adjustment, ensuring optimal impact efficiency at all times. Furthermore, it offers a choice between crawler-mounted and truck-mounted chassis options to suit diverse construction environments.

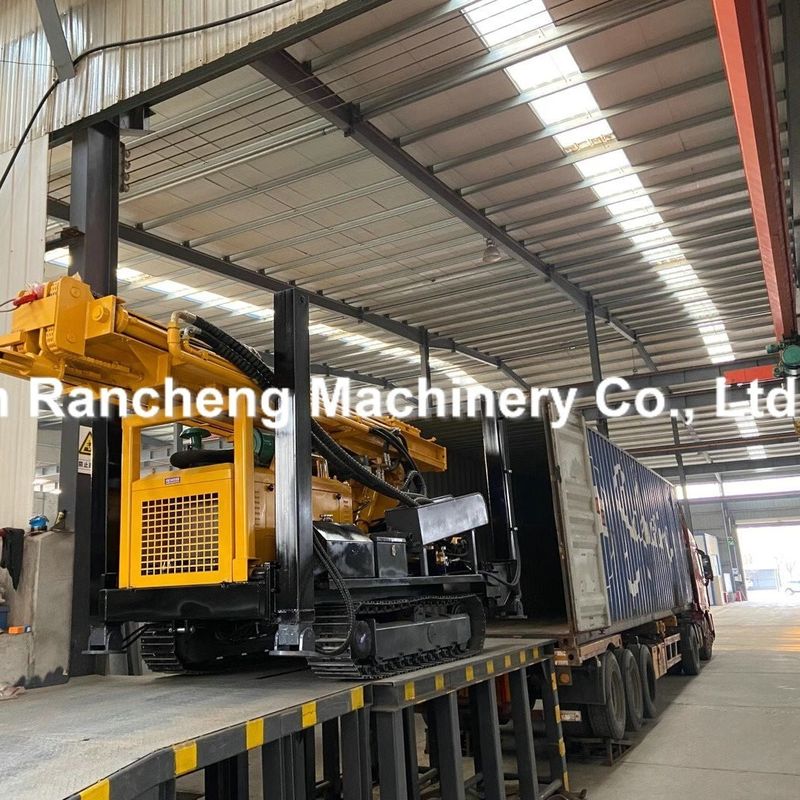

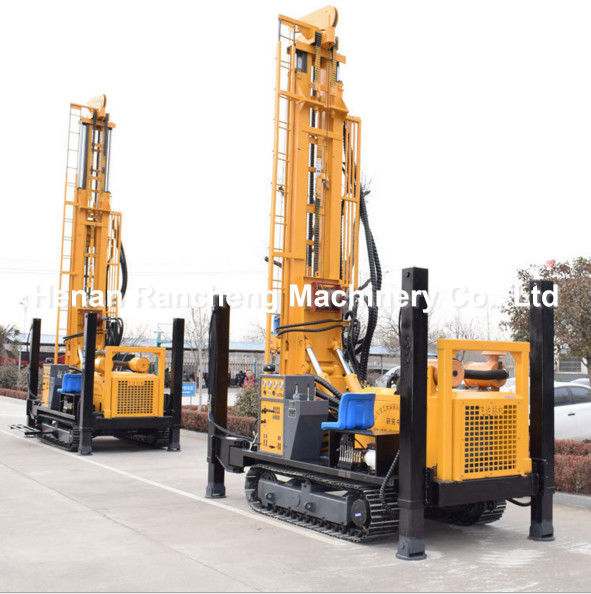

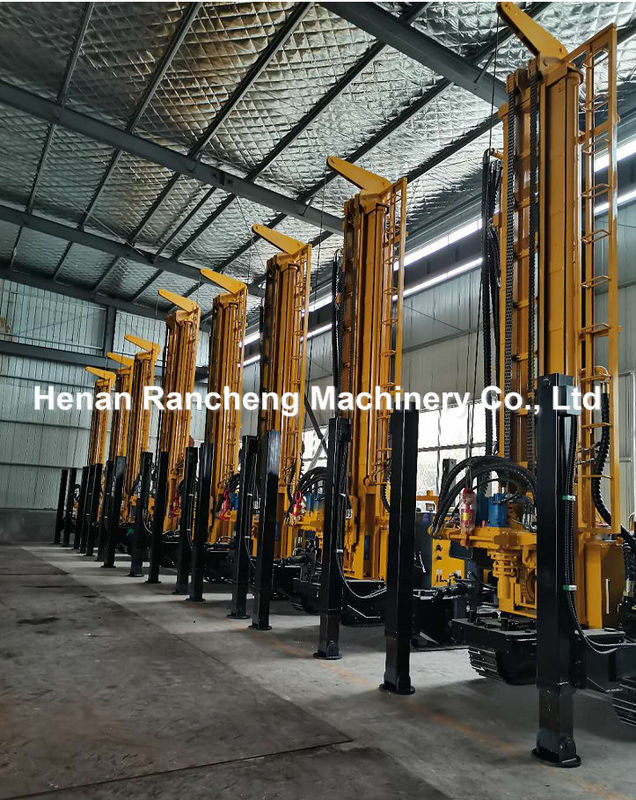

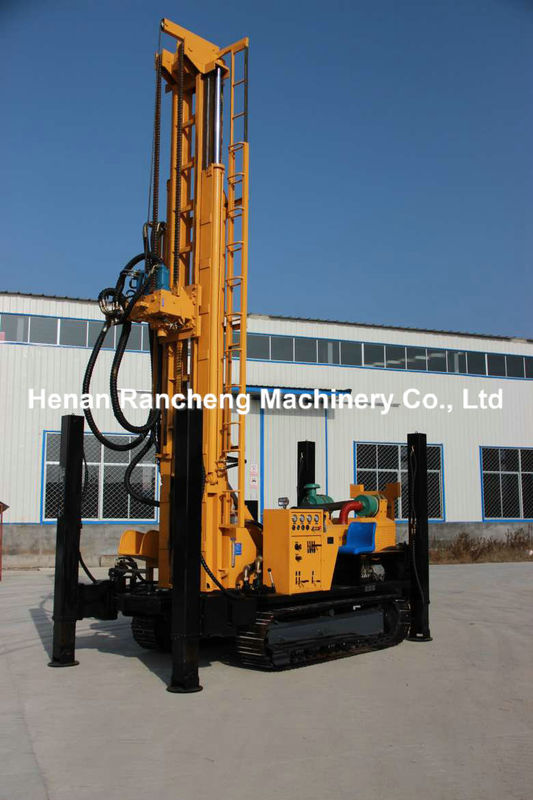

Product Images
