200m Tracked Water Well Drill Rig | For Irrigation, Geothermal & Light Exploration

Product Introduction

The RCS200C is a compact full-hydraulic water well drilling rig mounted on a durable rubber crawler chassis. It supports a maximum drilling depth of 200 meters, with an adjustable borehole diameter ranging from 90 to 300 millimeters. Powered by a 45kW diesel engine, the complete unit weighs around 2000 kilograms. It is compatible with both mud pump rotary drilling and air compressor driven down-the-hole (DTH) hammer drilling, delivering stable drilling performance across diverse geological conditions.

Product Specifications

Core Features

1.Dual drilling mode compatibility: Adapts to mud rotary and DTH air drilling methods, working effectively on sediment, clay, soft soil and medium-hard rock formations.

2.Full hydraulic drive system: Ensures smooth and steady operation with low failure rate and reduced daily maintenance workload.
Rubber crawler undercarriage: Travels stably on rough, uneven and hilly terrain; its lightweight structure allows easy transportation via ordinary pickup trucks.

3.Independent power supply: Runs on diesel engine without relying on external power grid, supporting uninterrupted operation in off-grid and remote locations.

Applications

This rig is widely deployed in water well construction projects, including agricultural irrigation wells, domestic water supply wells for farms, villages and residential households. It also fits geothermal heat pump borehole drilling, light geological prospecting, and auxiliary drilling tasks for small construction projects such as anchor holes and foundation pre-drilling. It performs reliably in rural areas, mountainous regions and remote sites with limited traffic and infrastructure.

Reasons for Selection

1.Its integrated multi-function design covers various small and medium-sized drilling demands, avoiding the cost of purchasing multiple specialized equipment.

2.It features flexible deployment and convenient transfer, which improves work efficiency for scattered and multi-point drilling projects.

3.With strong independent operation capability, it adapts well to remote areas with insufficient power supply and imperfect supporting infrastructure.

4.It has a user-friendly structure and low daily maintenance cost, providing a practical and cost-efficient drilling solution for individual operators, small contractors and agricultural users.

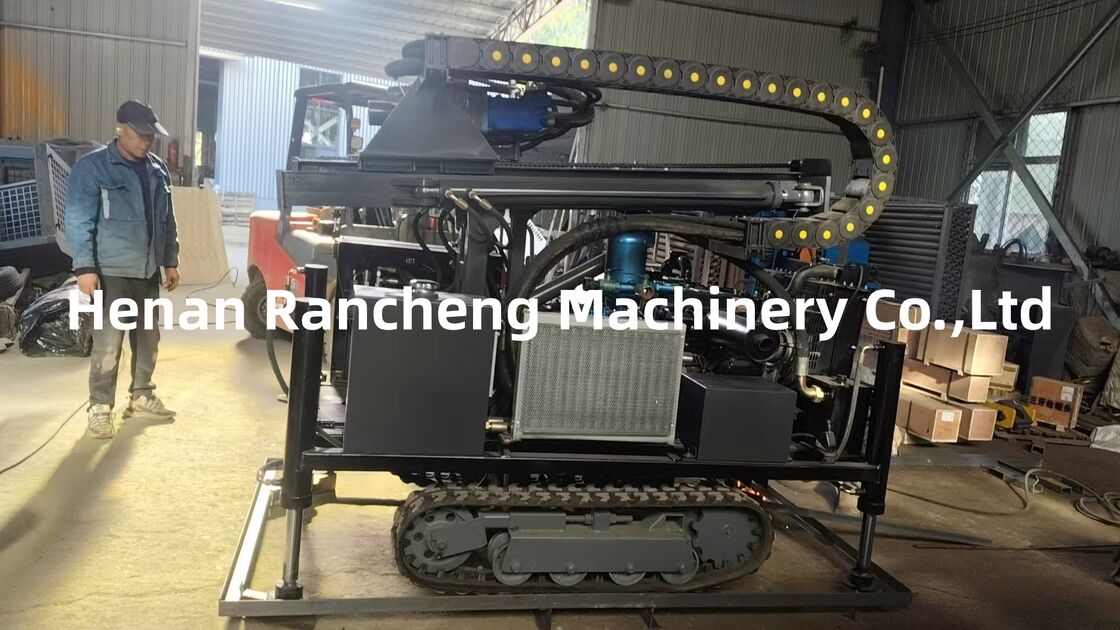

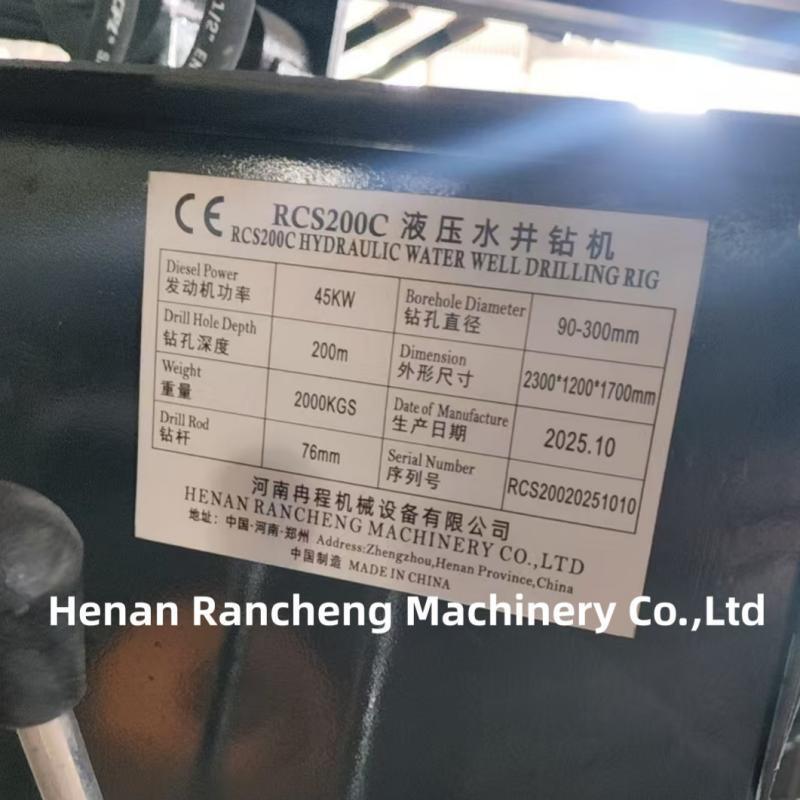

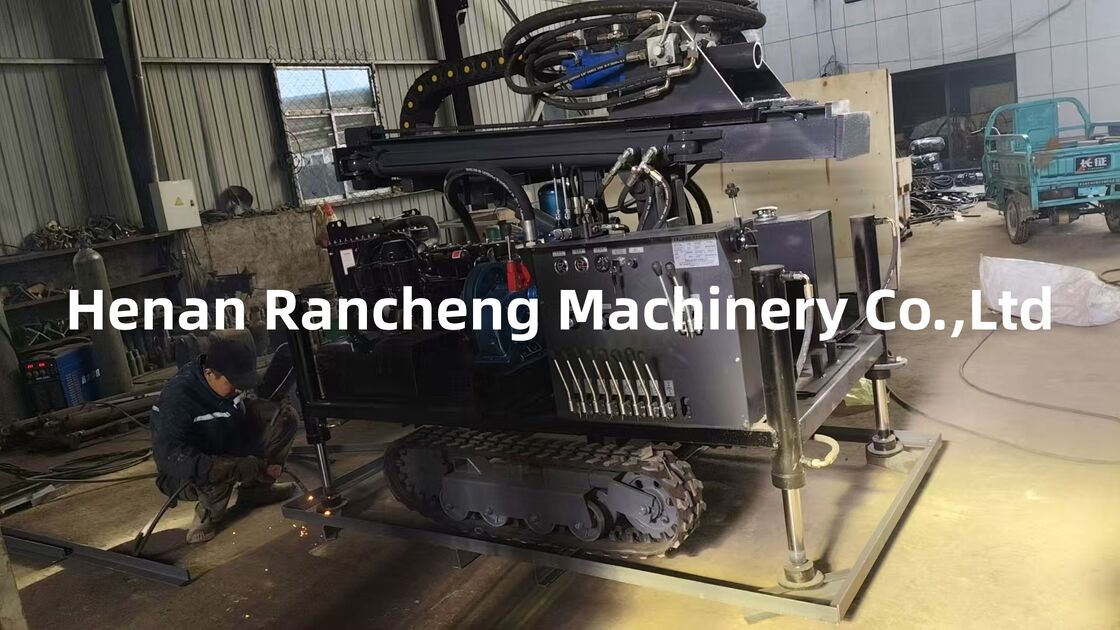

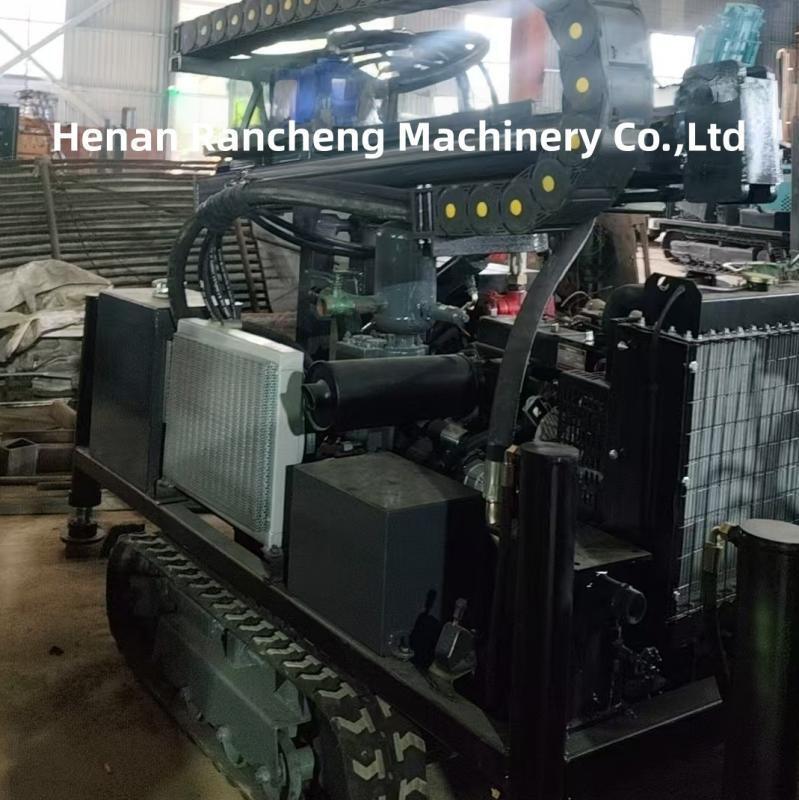

Product Image
